Product number 66060
Unavailable now
Spare part
MC-Titan-Topgun19

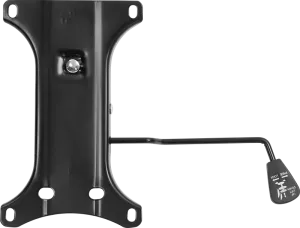

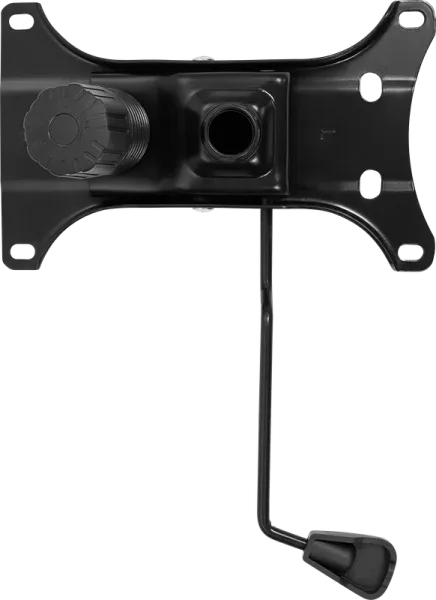

The tilt control mechanism for computer chairs allows you to adjust the height of the seat and the angle of swing. Made of durable metal with a thickness of 2 mm.
Tilt Control Mechanism

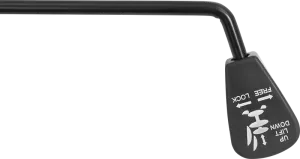

Allows to adjust the height of the seat using a lever acting on the gas lift cylinder
Move the lever up
Enables or disables the swing mechanism
Move the lever to the right-to the left

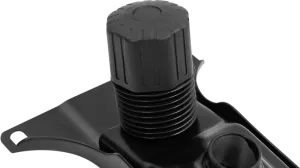

A special adjusting knob allows you to adjust the spring responsible for the swing stiffness

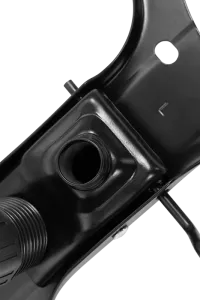

The mechanism has a seat for a standard gas lift cylinder
Specifications
Maximum load
200 kg
Material
metal
Color
black
Logistics characteristics
Warranty period
3 months
Product size (without package)
35.50 x 11.50 x 28.50 cm
Net weight
1.60 kg
Individual package size
36.00 x 13.00 x 29.50 cm
Box individual volume
0.0138 m³
Individual package weight
1.70 kg
Box size
30.50 x 29.50 x 39.50 cm
Box volume
0.0357 m³
Box weight
14.5 kg
Quantity in box
8 pcs
ROHS / CE
Yes
ITF-14
14714033660607
EAN
4714033660600
